Product Description
Over Head Travelling Cleaner is abbreviated as OHTC. It can be used with various specifications and models of roving, spun yarn, winding, double-twisting, air spinning, weaving, etc. The textile machinery is used in conjunction with the reciprocating cleaning of all parts of the textile machinery, which can remove flying flowers and inhibit the accumulation of dust, reduce the broken ends, yarn defects and weaving defects caused by the adhesion of flying flowers, improve product quality,The cleaning work can reduce the cleaning workload of workers, It is an ideal equipment for a civilized production environment and improving production efficiency.
Types and parameters
1. Type: belt drive, linear reciprocating blowing and suction cleaning machine
2. The main specifications are shown in the table below:
Model | Motor power | flow | Pressure | wind speed | blowpipes N / D | suctionpipes N / D |
OHTC-2A | 0.75kw | 1050 m3/h | 1500pa | >26m/s | 2×Φ110 | 2×Φ110 |
OHTC -2B | 1.1kw | 1200 m3/h | 1800pa | >28m/s | 2×Φ110 | 2×Φ110 |
OHTC -2C | 1.5kw | 1700 m3/h | 2400pa | >30m/s | 2×Φ110 | 2×Φ110 |
OHTC -2D | 2.2kw | 1900 m3/h | 2600pa | >32m/s | 4×Φ110 | 4×Φ110 |
OHTC -2E | 3kw | 2200 m3/h | 2900pa | >34m/s | 4×Φ110 | 4×Φ110 |
3. Operating speed: 8, 10, 12m/min
4. Noise of the whole machine: <82dB
Product Show
Advantages
1.Type of company :We are professional manufacturer
2.Strong R&D Ability: We can invent products and update new products to you every year.
3.Matching: We have lots of models.
4.Low MOQ : Small orders are also welcome, no MOQ.
5.Stric QC System: 100% QC inspection before shipment.
6. Fast Delivery: Large manufacturing capacity to grantee fast delivery.

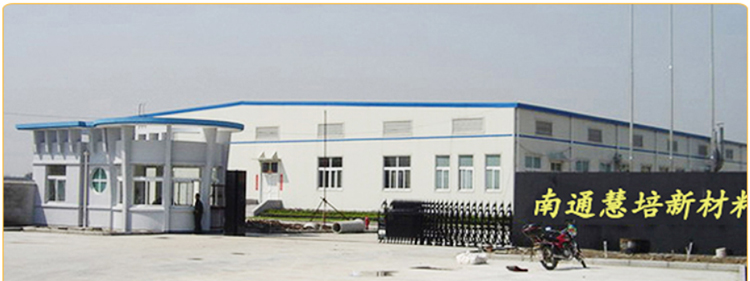

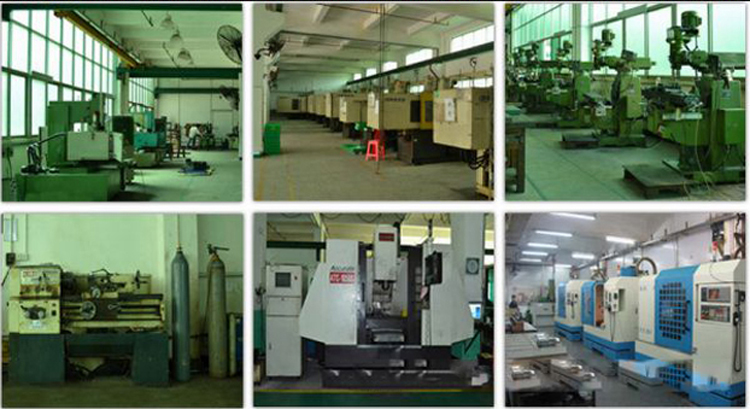

Company Profile
