Installation of the belt of over head travelling cleaner

Installation of the belt of over head travelling cleaner

The blow-suction cleaner can be used with the textile machinery which needs blow-suction cleaning, such as roving, spinning, winding, blending, double twisting, air spinning, weaving, etc. , the utility model can remove flying flowers and restrain the accumulation of dust particles, reduce the phenomenon of broken ends, yarn defects and weaving defects caused by the attachment of flying flowers, improve the product quality, replace the manual automatic roving cleaning work, reduce the cleaning workload of workers, and increase the platform of the car retaining machine, is to improve and optimize the production environment, improve the production efficiency of the ideal equipment. Nantong Huipei New Material Technology Co. , Ltd.

The running of the automatic textile traveling suction cleaning fan is driven by the friction between the Dragon Belt and the dragon belt pulley, so the wear and tear of the dragon belt is serious, and often needs to be replaced once a year, but its installation is quite troublesome, this article uses the graph and text to explain in detail its installment way.

The operation of the automatic tour air blower is driven by friction between the Dragon belt and the Dragon belt wheel. Therefore, the friction of the belt is serious, and it is often replaced once a year. However, its installation is quite troublesome. This paper explains the installation formula in detail in the form of both illustrations and illustrations.

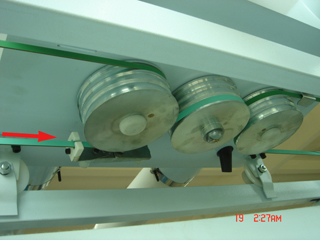

The top side of the Dragon belt of the textile automatic tour suction and cleaning fan must be installed first (as shown in the Dragon belt on the right side of the figure above), put the Dragon belt in the safety hook, then around the back of the second wheel from the first wheel, and finally to the front of the third wheel. The belt must be stuck on the wheel hub on the top of the Dragon belt wheel.

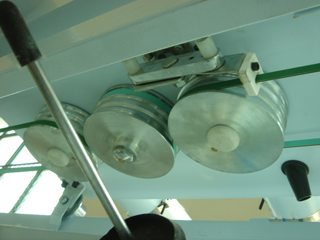

The installation of the Dragon belt on the other side of the textile automatic itinerant blowing and suction cleaning fan is shown in the figure above. The Dragon belt first goes through the ceramic plate of the commutator fork, and then goes around the first wheel, then around the back of the second wheel, and finally around the front of the third wheel. The Dragon belt must be stuck on the two wheel hubs under the Dragon belt wheel.

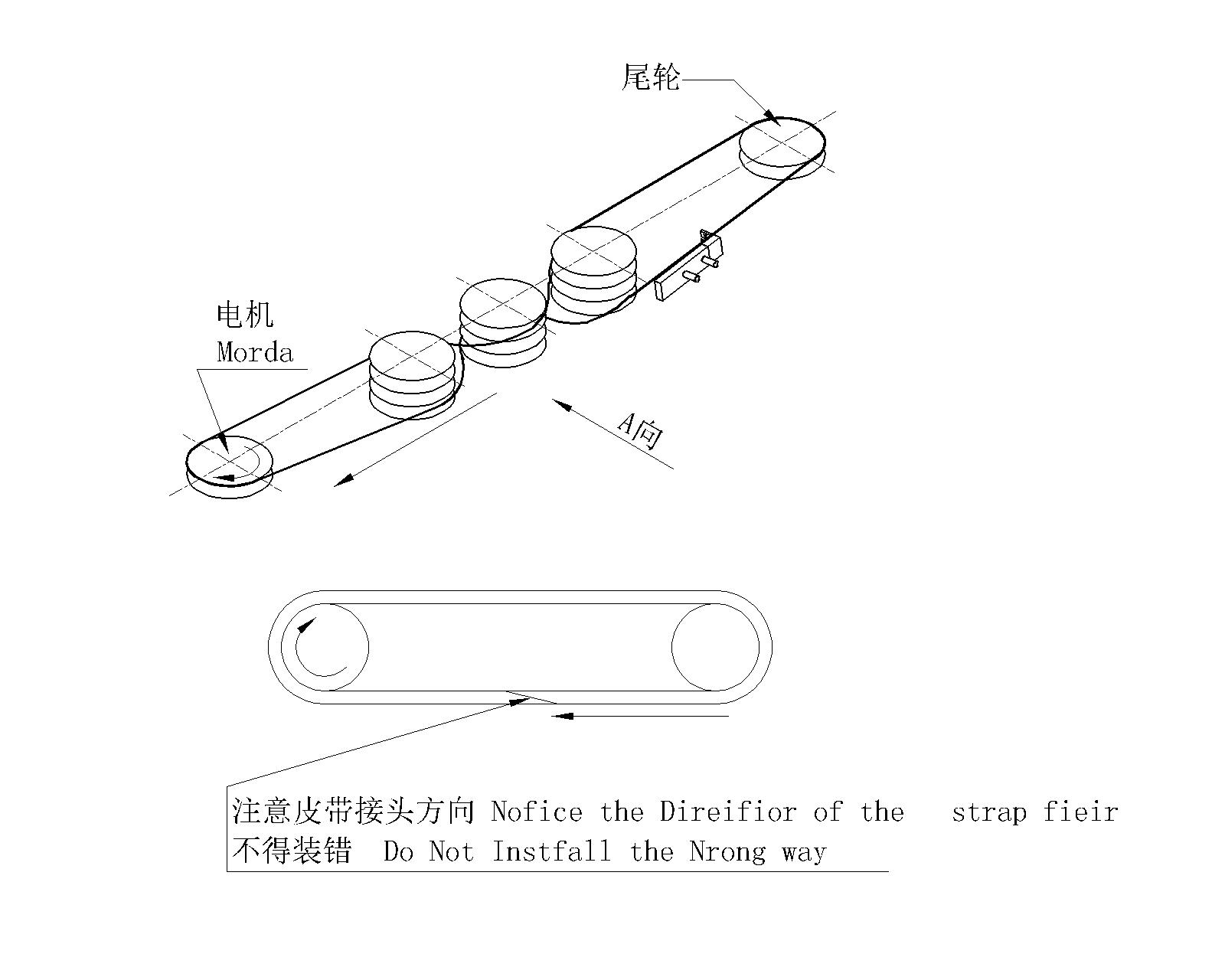

The overall drawing of the Dragon belt of the textile automatic itinerant blowing and suction cleaning fan is as above. Pay attention to the motor steering and the Dragon belt joint.
